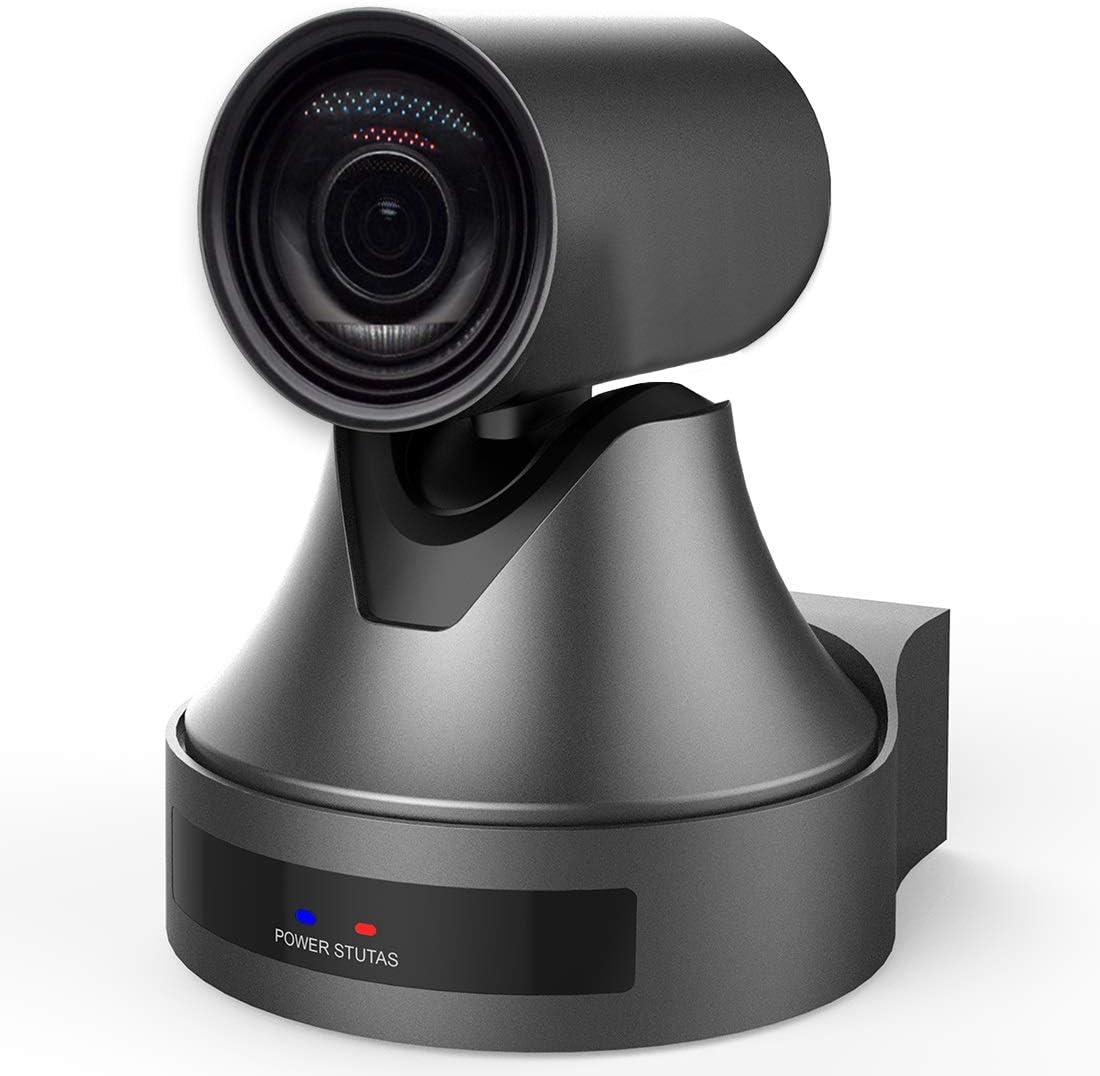

PTZ Camera with USB3.0, 12X Optical Zoom, 60FPS U259758
PTZ Camera with USB3.0, 12X Optical Zoom, 60FPS U259758
As a PTZ camera,supports horizontal rotation(-170° to 170°) and vertical rotation(-30° to 30°).It has multiple ways of control, such as the included IR remote,USB UVC protocol control,Visca control via RS232, Compatible with Ptzoptics App.
Is a Full HD professional live streaming camera and video conference camera,it can output max 1080p@60fps video from USB 3.0.Suitable for any setting,such as business,events,school and telemed etc.
Compatible with most software on the market, such as Zoom,Skype,Teams,Webex,OBS,Twitch,YouTube Live,Facebook live etc.It has a variety of installation modes, which can be used with tripod brackets, wall brackets, and ceiling brackets.
What can you get.12X Full HD PTZ Camera,Power adapter,IR remote control,manual,Serial control Cable,USB Cable.
BA17U is a new professional Full HD Broadcast and Conference PTZ Camera.It has 12X lossless optical zoom+16X Digital Zoom and 72.5 degree FOV with Panasonic's 1/2.7 inch high quality HD CMOS sensor.Supports USB3.0 output frame rate up to 60fps in 1080P.High SNR of CMOS sensor combined with 2D and 3D noise reduction algorithm allows it to keep the picture clean and clear in an Low-light environment of 0.5 Lux.Built-in microphone, pick up distance up to sixmeters, high sensitivity, low noise floor.Support UVC,VISCA/Pelco-D/Pelco-P protocols etc.Is a ideal use for Live Streaming,Broadcast,Conference,Events,Church and School etc
Sensor:1/2.7'',CMOS,Effective Pixel:2.07M
Scanning:Progressive
Lens:12x,f3.5mm~42.3mm,F1.8~F2.8
Digital Zoom:16x
Video Output:1080p/60,1080p/50,1080i/60,1080i/50,1080p/30,1080p/25,720p/60,720p/50,720p/30,720p/25,640x480p/240,480i,576i
Minimal Illumination:0.5Lux@(F1.8,AGC ON)
Shutter:1/30s~1/10000s
Digital Noise Reduction:2D/3D Digital Noise Reduction
Video S/N:≥55dB
Horizontal/Vertical Angle of View:72.5°~6.9°/44.8°~3.9°
Horizontal Rotation Range:±170°
Vertical Rotation Range:-30°~+30°
Pan Speed Range:1.7°~100°/s
Tilt Speed Range:1.7°~69.9°/s
UVC PTZ:Support
Backlight Compensation:Support
H/V Flip:Support
Image Freeze:Support
Number of Preset:255
Preset Accuracy:0.1°
Audio Interface:1x3.5mm Audio Interface,Line In
USB Interface:1xUSB3.0 Type B
Communication Interface:1xRS232 In(8pin Min DIN),1xRS232 Out(8pin Min DIN)
Power Jack:JEITA type(DC IN 12V)
MTBF: >30000h
Size:128mmx118mmx158mm
Net Weight:0.91Kg
